Cross-compatible | MagMech compatible (TMR) | Full range 0.01mm RT

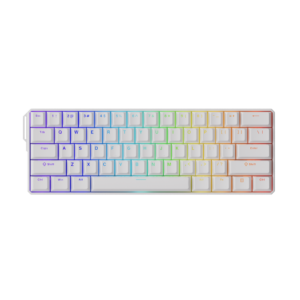

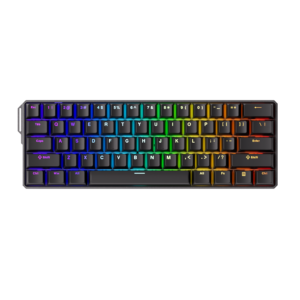

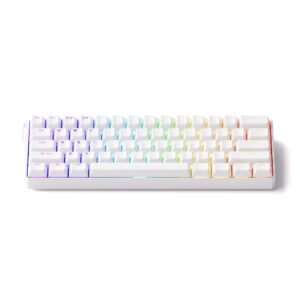

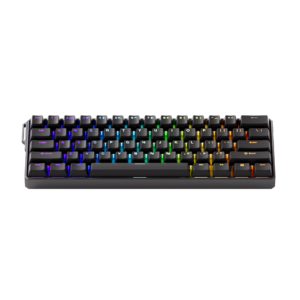

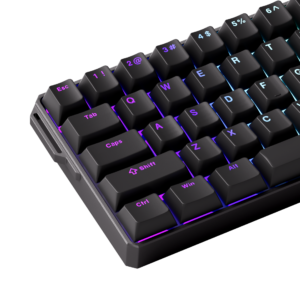

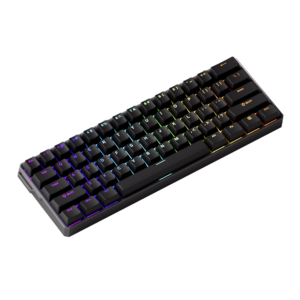

FUN60 Ultra Megnatic Switch HE/TMR keyboard
Introducing the MonsGeek FUN series: The FUN60 Ultra Magnetic Switch Aluminum Keyboard!
Cross-compatible with common magnetic switches
The FUN60 series offers compatibility with 5 third-party magnetic switches. Users can select the corresponding switch from the MonsGeek driver list and easily calibrate the keyboard after replacement. Mixing and matching the switches in different keys is also possible.
Disclaimer: High precision switches require tuning and experimentation with the keyboard. The switches listed are guaranteed to work to within 0.01mm accuracy. Other switches may work but will not achieve the stated accuracy.
Full range RT0.01mm
Ultra-precise 0.01mm quick-release and adjustable actuation distance in 0.01mm increments. Users can customize their typing or gaming experience for faster response times and improved accuracy – perfect for competitive gaming.
ARM Cortex-M4 CPU
Mod-Tap is a design that provides convenience for gaming. It features an automatic calibration between -20°C and 80°C for faster performance and longer battery life (wireless models only). The powerful CPU offers improved processing power with low energy consumption. It allows the creation of dedicated or dual-function buttons based on keypress behavior.
A single key press can perform two functions: hold the key for one function and press the key for another.
ARGB with a refresh rate of 500 Hz
The FUN60 series features ARGB (addressable RGB) with individually controlled LEDs for uniform, flicker-free lighting. With the integration of alpha channels and a 500Hz refresh rate, it offers richer dynamic effects and reduces visual fatigue – perfect for gaming and aesthetic construction.
Universal 8K polling rate
With a polling rate of 8000 Hz for all keys in wired or 2.4G wireless mode, you can enjoy ultra-fast response times and smoother, more precise inputs – perfect for gaming and high-performance tasks.
Akko Glare Magnetic Switch
These switches feature additional pins for stabilization, reversed polarity and a closed bottom for a better sound profile.
- Total travel: 3.4 mm
- Actuation force: 25gf Min
- Actuating force at 2.0mm stroke: 40±5gf
- Final force: 48g Max
- Initial magnetic flux: 95+15GS (PCB1.6mm)
- Magnetic flux below: 589+50GS (PCB1.6mm)
- Upper/Shaft/Lower: PC/POM/PC
- LED diffuser
TMR sensor
Supports mechanical switches (only for TMR version)
- A truly customizable magnetic switch keyboard
- TMR takes precision to the next level. Users can freely combine magnetic switches and any 5-pin mechanical switches like never before!
- Imagine replacing only the WASD and arrow keys with magnetic switches and leaving the rest with mechanical keys for a classic mechanical typing experience. What a dream!
Classic features
-
Snap Key
Snap Key is MonsGeek’s implementation of SOCD that prioritizes the last key press for quick direction changes without releasing previous inputs. This makes for smooth and responsive control, especially in FPS games where quick reactions and precise movements are crucial.
-
Adjustable actuation distance
These magnetic switches allow users to adjust the actuation point of each key from 0.1mm to 3.4mm, allowing different types of pressing when gaming or typing.
-
Rapid Trigger (RT)
Rapid Trigger dynamically changes the actuation and deactivation points of the keys. Through the MonsGeek driver, users can select All Keys or Per Key modes and enable Nonstop Rapid Trigger for near-instant key response, giving FPS gamers a competitive edge in fast-paced gameplay.
For example, when players enable RT, they can achieve “counter-strafe” in VALORANT games.
-
Dynamic Keystrokes (DKS)
Pressing a key can trigger four different key operations.
Depending on the strength of the key press: a light press triggers action 1, a deeper press activates action 2, and releasing the key also supports a two-stage key setting.
-
Toggle Key (TGL)
TGL, or Toggle Key, turns a key into a toggle switch. When you press this switch, you can activate one of two scenarios: either you hold the key/function down continuously or you trigger the key/function multiple times at a high frequency.
-
Mod-Tap
Mod-Tap is a design that provides convenience for gaming. It allows the creation of dedicated or dual-function keys based on key press behavior.
A single key press can perform two functions: hold the key for one function and press the key for another.
FUN60 Ultra Tri-Mode Series Multi-Mode
Tray Mounted
- The structure mounted on the tablet provides better stability, less flex and a smoother typing feel.
- The aluminum plate increases durability, stability and sound quality while optimizing performance with magnetic switches.
- The FUN60 features oiled stabilizers that reduce rattling, improve key stability, and enable smoother typing.
