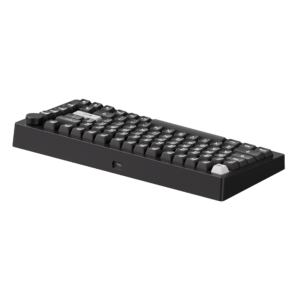

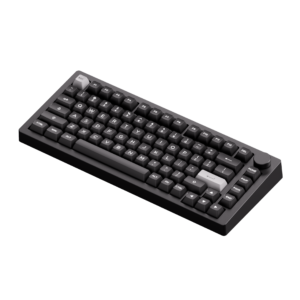

Monsgeek M1 V5 VIA Rapid Disassembly Mechanical Keyboard
Quick Release Aluminum Mechanical Keyboard

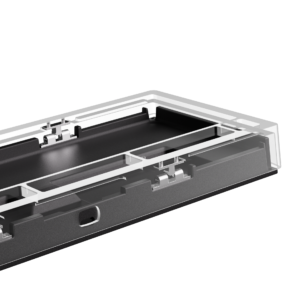

Enjoy customization with ease—designed for both beginners and experienced users, featuring quick, tool-free, screwless assembly between the aluminum top and bottom case.
Knob Pulled Out
Lift then Press
Mod Now
Wireless Freedom for Work and Play
Endless Remapping and Backlight Customization
*Disclaimer: the quick disassembly keyboard is based on QMK with strong potential for remapping and customization. The source code is disclosed per GPL license requirements. For any inquiries about disclosure, please reach out to the Maintainer or MonsGeek Support team.
Flexibility Meets Customization in Keyboards
Hassle-Free
5-Pin Hot-swappable
M1 V5 is equipped with premium 5-pin hot-swap sockets, enabling users to easily assemble and swap between 5-pin and 3-pin switches.
South-facing PCBa
The south-facing PCB avoids causing interference with Cherry profile keycaps during customization, offering more compatibility and flexibility.

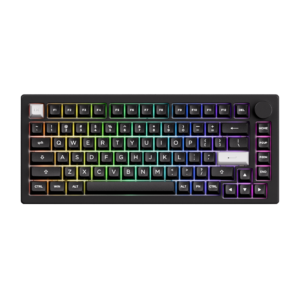

RGB Backlight
M1 V5 provides around 16 preset backlighting effects and customization through VIA, with brightness and speed control.
Gasket-mounted
The M1 V5 Series features a gasket-mounted structure, delivering a comfortable, soft, and cushioned typing experience right out of the box.
Lubed Stabilizers
M1 V5 has lubed stabilizers for easier assembly, perfect for beginners. It also includes extra Screw-in stabilizers to suit different user preferences.
Unlike other M Series models, the M1 V5 Series features an upgraded 8000mAh built-in battery, allowing for extended uninterrupted typing, gaming, or productivity without constant recharging.
2.4Ghz Wireless
M1 V5 is equipped with a receiver that allows users to utilize the 2.4GHz wireless mode, providing low latency suitable for gaming and typing purposes.
BT 5.0
M1 V5 makes it easy to connect up to 3 devices with a simple Fn+E/R/T combination, enabling seamless switching between tablets, computers, and phones.
USB-C Wired
M1 V5 offers a choice for users who prefer a USB-C wired keyboard, ensuring consistent and rapid response times for FPS gaming and minimal input lag.
A Full-fledged Upgrade
M1 V5 75% Aluminum Series features a full-fledged upgrade to the noise reduction system, and provides greater flexibility for experimenting with different sound profiles than before.
Plate Foam & Swith Pad
Poron Plate foam and IXPE switch pads reduce noise, providing a cleaner and more comfortable sound experience when typing
Case Foam
3.0mm thick top white Poron case foam with socket cut-outs, combined with a PET layer for enhanced sound isolation and noise reduction
PET Film
An additional PET layer is attached to the plate foam to keep a good seal for the best possible effect on the sound of the keyboard
Separate Encoder
The M1 V5 quick-release custom keyboard features an upgraded PCB with a separate encoder on a dedicated circuit board, enhancing stability, durability, and performance. The encoder PCB is securely installed into the bottom case with screws.
Simplicity
By removing the side accent, the consistent support from MonsGeek fans allows us to balance costs further and focus on delivering an enthusiast-level keyboard at a reasonable price.
Fully Upgraded Knob
This adjustment is based on user experience and feedback. M1 V5 Series features a new encoder and a levitating structure to avoid scratches against the case, as reported in the previous version.
Anti-Ghosting Keys
With N-key rollover (NKRO) feature, M1 V5 supports simultaneous key presses without conflicts, which is particularly important in optimizing gaming experiences.
Mac and Windows System Switch
– Top: Mac Wireless Mode (built-in power supply on)
– Middle: Default Windows Wired Mode (built-in power supply off)
– Bottom: Windows Wireless Mode (built-in power supply on)
Note: The switch is located under the CAPS key
Akko Rosewood
Type: Linear
Operating Force: 40±5gf
Total Travel: 4.0mm
Pre Travel: 2.0±0.5mm
Akko Creamy Purple Pro
Type: Tactile
Operating Force: 30±5gf
Total Travel: 3.0mm
Pre Travel: 2.0±0.6mm
Tactile Travel: 0.5mm
Tactile Force: 55±5gf
Need More Foam?
MonsGeek M1 V5 VIA comes with a comprehensive upgrade to the noise reduction system, offering greater flexibility for experimenting with a variety of sound profiles.

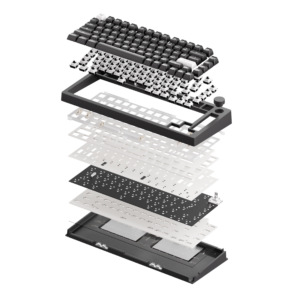

*Disclaimer: The structure is for reference only. The Barebone version doesn’t include switches, while the M1 V5 VIA Fully Assembled version comes with switches and keycaps.
